| Производитель | AVISION |
| Формат | A4 |
| Тип устройства | Сканер |

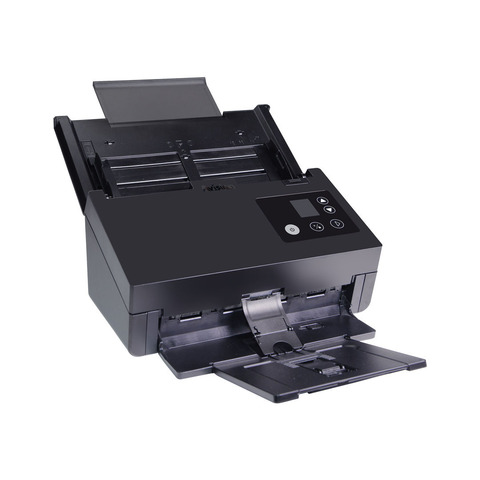

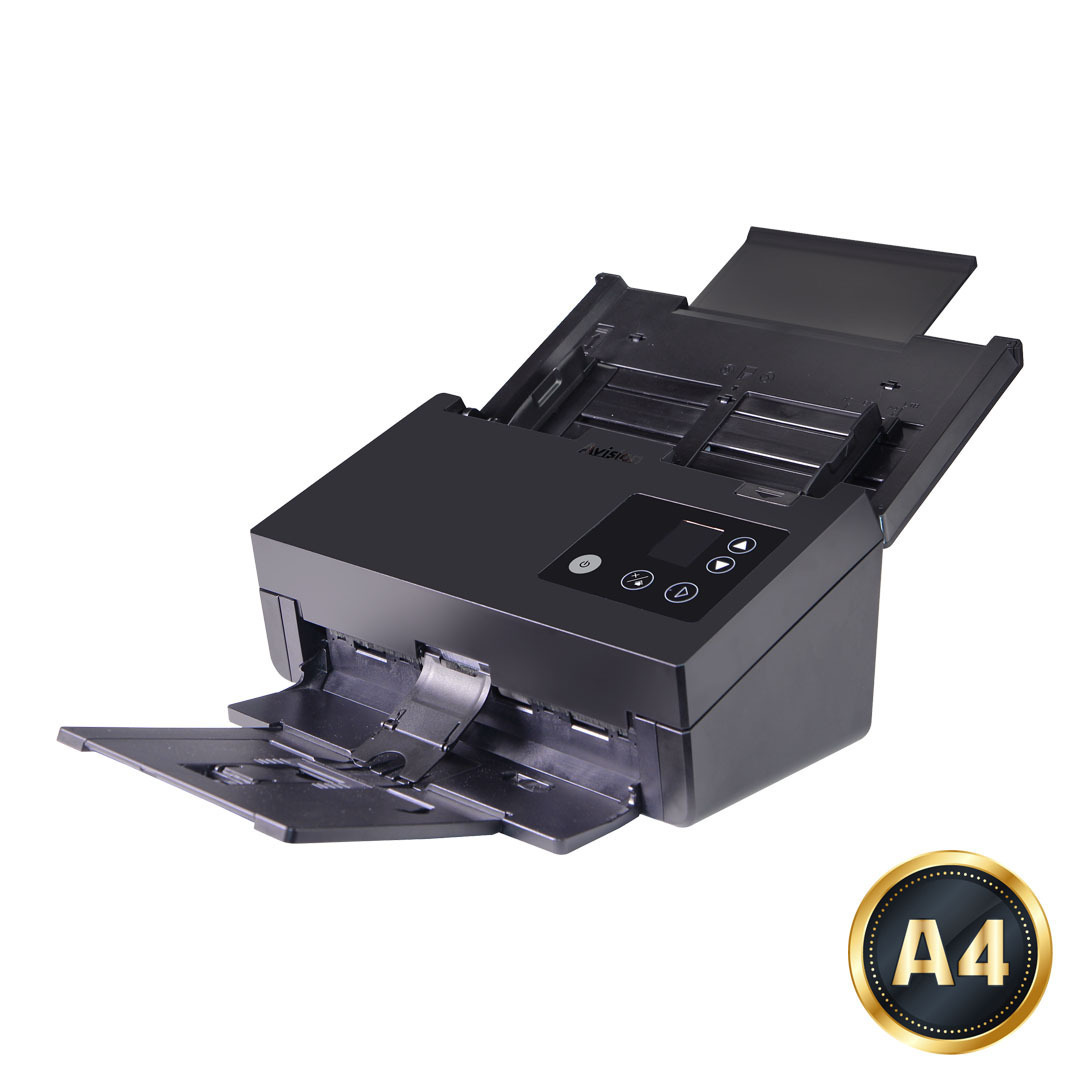

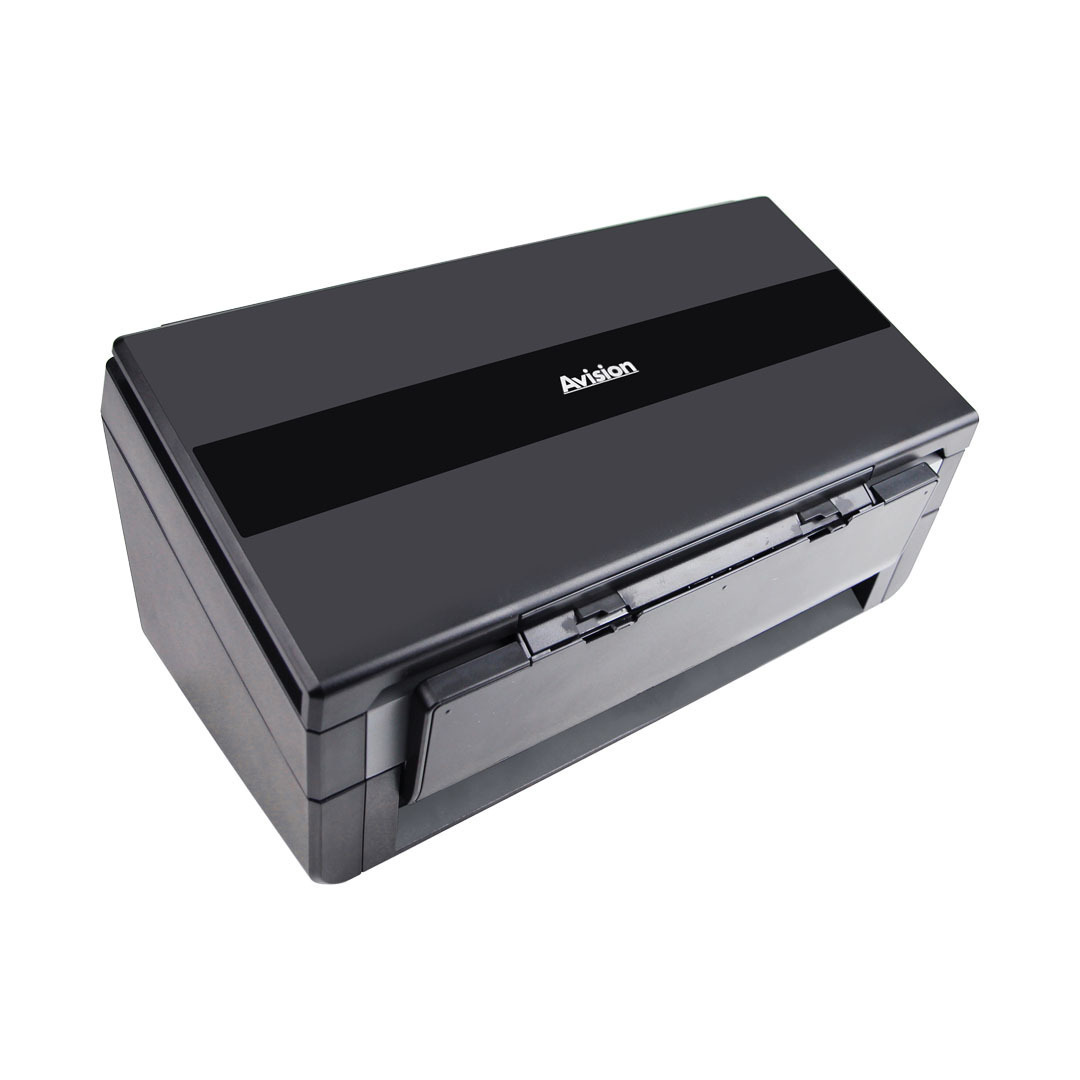

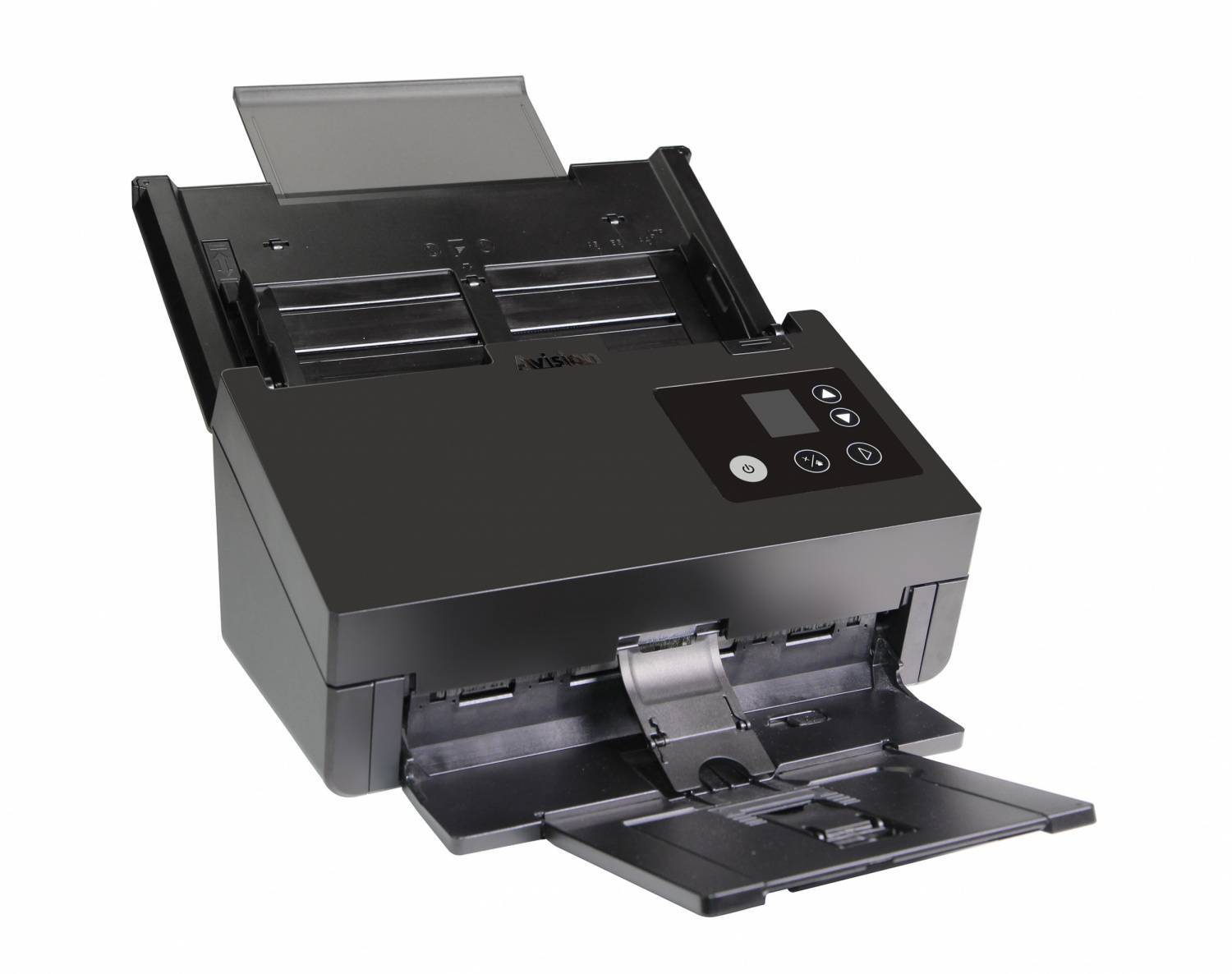

The Avision AD370 series are 70 page-per-minute, duplex scanners that are fast, reliable, and affordable for business where scanning plastic ID cards, business cards, documents or other heavy card stock is necessary.
Embedded with Avision-developed image processor , the scanned images can be automatically cropped, straightened, and optimized with enhanced speed.
| Общая спецификация | |
| Технология |
Contact Image Sensor (CIS) |
|---|---|
| Источник света |
LED |
| Режим подачи документов |
ADF |
| Оптическое разрешение (т/д) |
600 |
| Output Resolution (dpi) |
1200 |
| Форматы файлов |
BMP, PNG, GIF, JPEG, Single-Page PDF, Multi-Page PDF, Multi-TIFF, TIFF, RTF, TXT, OCR( for iScan only ), XPS, DOC, XLS, PPT, DOCS, XLSX, PPTX, HTML |
| Полутоновые узоры |
Dither and Error Diffusion |
| Режим оттенков серого |
16-bit input 8-bit output |
| Цветовой режим |
48-bit input 24-bit output |
| Размер памяти |
512MB SDRAM |
| Размеры (ШхГхВ) |
Maximum：316 x 680 x 239 mm ( 12.4 x 26.8 x 9.4 in. ), Minimum：316 x 191 x 168 mm ( 12.4 x 7.5 x 6.6 in. ) |
| Вес |
4.7 kg |
| Интерфейс |
USB3.2 Gen1x1 |
| Потребляемая мощность |
Operation < 35 W；Ready < 9 W；Sleep < 2.15 W；Off < 0.2 W |
| Акустический шум |
Operation < 52 dB；Ready < 25 dB |
| Рекомендуемый дневной объём |
Up to 15,000 pages |
| Поддержка ОС |
Win 7, Win 8, Win 10 |
| Программное обеспечение в комплекте |
TWAIN Driver, ISIS Driver, Button Manager, PaperPort, AVScan, WIA Driver |
| Features | |
| Ультразвуковое обнаружение замятия бумаги |
Yes |
| Long Paper Mode |
Up to 200 dpi Color Duplex 240 in. ( 6096 mm )；Up to 300 dpi Color Duplex 218 in. ( 5540 mm )；Up to 600 dpi Color Duplex 59 in. ( 1500 mm ) |
| Сканирование карт |
Embossed card ( Thickness 1.25 mm ) |
| Scan Size | |
| Минимум АПД |
50 x 50 mm |
| Максимум АПД |
216 x 356 mm ( Legal )( 8.5 x 14 in. ) |
| Ёмкость АПД |
100 sheets ( A4 : 80 g/m² or 20 lb. ) |
| Плотность бумаги (толщина) |
27g ~ 413 g/m² ( 7 to 110 lb ) |
| Толщина удостоверения личности |
Embossed card ( Thickness 1.25 mm ) |
| Размер сканирования | |
| Ч/Б при 200 т.д., A4 |
Simplex : 70 ppm；Duplex : 140 ipm |
| Ч/Б при 300 т.д., A4 |
Simplex : 70 ppm；Duplex : 140 ipm |
| Цветной при 200 т.д., A4 |
Simplex : 70 ppm；Duplex : 140 ipm |
| Цветной при 300 т.д., A4 |
Simplex : 70 ppm；Duplex : 140 ipm |
* The above specifications may vary due to computer performance and sales regions. For further details, please consult your local distributor.
