| Производитель | Dahua |

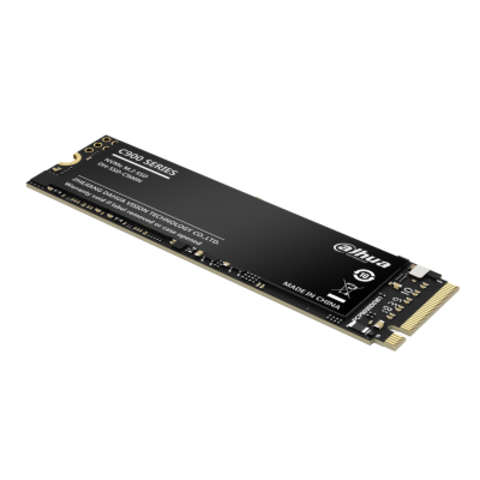

NVMe M.2 Solid State Drive
> Adopts high-quality 3D NAND wafer level chip
> Supports PCIe3.0 x4 and NVMe 1.3 protocol
> All-metal cooling plate is included; equipped with intelligent temperature control technology
> Adopts TRIM to improve read/write performance and speed
> Supports Max. Write technology for full-disk SLC cache
> Supports LDPC ECC to enhance data reliability
> Low power consumption management
|
Technical |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Product Model |
DHI-SSD-C900VN256G |
DHI-SSD-C900VN512G |
DHI-SSD-C900VN1TB |
DHI-SSD-C900VN2TB |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Capacity1 |
256 GB |
512 GB |
1 TB |
2 TB |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Form Factor |
M.2 2280 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Port |
PCIe Gen 3.0 x 4 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Net Weight |
Max. 8 g (0.02 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Product Dimensions2 |
80.00 mm × 23.00 mm × 4.80 mm (3.15" × 0.91" × 0.19") |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Packaging Dimensions |
130 mm × 104 mm × 17 mm (5.12" × 4.09" × 0.67") |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Memory Component |
3D NAND FLASH |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Consumption3 |
2.8 W (max); 0.17 W (idle) |
3.689 W (max); 0.611 W (idle) |
3.95 W (max); 0.05 W (idle) |
4.15 W (max); 0.06 W (idle) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
S.M.A.R.T |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
TRIM |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Garbage Collection |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Sequential Read3 |
Up to 3,300 MB/s |
Up to 3,300 MB/s |
Up to 3,400 MB/s |
Up to 3,400 MB/s |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Sequential Write3 |
Up to 1,200 MB/s |
Up to 2,700 MB/s |
Up to 3,000 MB/s |
Up to 3,000 MB/s |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
4K Random Read3 |
Up to 124400 |
Up to 175800 |
Up to 151200 |
Up to 544300 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
4K Random Write3 |
Up to 177900 |
Up to 113900 |
Up to 90600 |
Up to 403900 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
MTBF |
1,500,000 hours |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Temperature |
0 °C to +70 °C (+32 °F to +158 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage Temperature |
–40 °C to +85 °C (–40 °F to +185 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Humidity |
5%–95% (non-condensing) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Vibration Resistance |
10–200Hz, 0.5G |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Shock Resistance |
1,500 G/0.5 ms (half sine wave) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
TBW |
128 TB |
256 TB |
512 TB |
2000 TB |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Warranty4 |
3-year limited warranty |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Reference Information |
1. Capacity calculation: 1GB = 1 billion bytes (IDEMA). Actual available capacity might be reduced (due to formatting, partition, operating system applications, or other necessary usage). 2. System configuration of performance test: Chip-Intel Z270 Chipset, Intel Core i7-7700K@4.2GHz, 8GB DDR4; operating system-Windows 10 x64; testing tool-CrystalDiskMark 8.11.2. 3. Warranty period or maximum write amount (TBW), whichever comes first. 4. High performance SLC cache has been enabled. *Above data based on internal testing of Zhejiang Huayixin Technology Co., Ltd Laboratory. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
