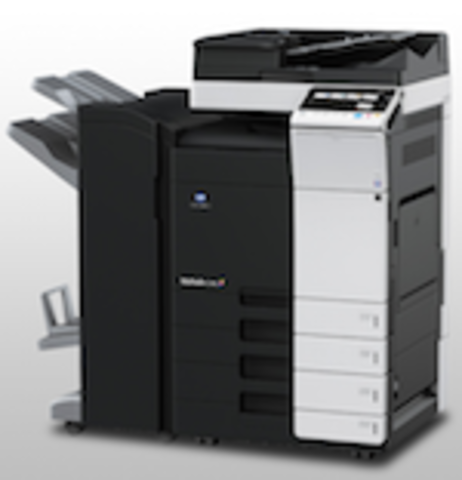

Представляем новые мфу Konica Minolta bizhub C308e и с368e. Новые модели заменяют собой соответственно модели KM bizhub C284e и c364e

Основные особенности новой серии:


  • The 9 inch operation panelWidgets function
    9 дюймовый сенсорный дисплей

    Новая сенсорная панель управления облегчает управление и делает работу с мфу еще проще. 4 аппаратных кнопки внизу экрана можно запрограммировать с помощью макросов для вызова самых востребованных операций. А система виджетов предоставит пользователю быстрый доступ к информации о работе мфу, текущих заданиях и т.д.

  • Standard web browser

    Кроме этого дисплей можно использовать для просмотра и печати интернет страниц как в обычном браузере.

  • The product design

    Дизайн серии bizhub C368e выполнен в соответствии с концепцией Info-palette.


Печатайте всегда и отовсюду с продвинутыми беспроводными и мобильными технологиями

The Mobile Touch Area

  • The Mobile Touch Area

    Mobile Touch Area новая возможность печати с мобильных устройств. Поддержка технологий NFC (Near Field Communication) и Bluetooth LE (Low Energy)*1 позволяет печатать и сканировать непосредственно с мобильного устройства.

    *1 Требуется дополнительно - Device Connection I/F Kit EK-609.

    Поддержка Wireless LAN (AP mode)
  • Wireless LAN (AP mode) connection image

    Новые мфу поддерживают режим Wireless LAN (AP mode), который позволяет устанавливать прямое wi-fi соединение между bizhub и мобильным устройством.

    Optional Upgrade Kit UK-212 is required.
  • Поддержка AirPrint, Mopria Print Service, Google Cloud Print
    AirPrintMopria Print ServiceGoogle Cloud PrintKonica Minolta Print Service
  • PageScope MobileHow to use the QR code.

    How to use the QR code.

    PAGE SCOPE Mobile for iPhone/iPad QR Code PAGE SCOPE Mobile for Android QR Code
  • Use with your mobile device.
    Access and download easily without typing the website address.


Широкие возможности, высокая производительность, гибкая конфигурация

Plenty of paper feed options

  • Plenty of paper feed options

    В стандартной конфигурации новые мфу имеют ёмкость лотков 1,150 листов. С помощью дополнительных кассет ёмкость лотков можно увеличить до 3,650 листов.

  • Fiery controller

    Опциональный Fiery Image Controller позволяет добиться профессионального качества работы с графикой.

  • Multifunction finisher

    Multifunction finisherEmperon printing system

  • Опциональный финишер позволяет производить автоматическую постпечатную обработку материала.


Расширенные возможности по организации защищенной печати и управлению правами доступа.

  • IC card authenticationBiometric authentication


Возможные конфигурации





Технические характеристики


bizhub C368

bizhub C308

TypeDesktop Full Colour Printer / Copier / Scanner
Colour SupportFull colour
Copy ResolutionScanMain: 600 dpi ? Sub: 600 dpi
Print1,800 dpi (equivalent) ? 600 dpi
Gradation256
Memory Capacity (Std./Max.)2 GB/4 GB
HDD250 GB
Original TypeSheets, Books, Objects
Max. Original SizeA3 (11" ? 17")
Output SizeMain unit: SRA3*1, A3 to A5, 12-1/4" ? 18" (A3 wide (311.1 mm ? 457.2 mm)), 11" ? 17" to 8-1/2" ? 11", 5-1/2" ? 8-1/2", 8" ? 13"*2, 16K, 8K
Bypass Tray: SRA3, A3 to A5, B6*3, A6*3, 12" ? 18" (A3 wide (311.1 mm ? 457.2 mm)), 11" ? 17" to 5-1/2" ? 8-1/2", 8" ? 13" *4, 16K, 8K, Postcard (A6 (4" ? 6" Card)), Envelope*5, Label sheet, Tab paper, Banner paper (Width: 210 mm to 297 mm (8-1/4" to 11-11/16"), Length: 457 mm to 1,200 mm (18" to 47-1/4"))*6
Image LossMax. 4.2mm or less for top edge (5 mm for thin paper),
Max. 3.0mm or less for bottom edge,
Max. 3.0mm or less for right/left edges
*A loss of 4.2 mm each during printing.
Warm-Up Time*7 (23°C, std. voltage) * The time required to start printing when both the main power and sub-power switches are turned from OFF to ON.Colour/B&W: 20 sec. or less
* The time required to star t printing when the main power switch is ON and the sub-power switch is turned from OFF to ON.Colour/B&W: 20 sec. or lessColour/B&W: 18 sec. or less
Copy Out Time*8Colour6.9 sec. or less7.3 sec. or less
B/W5.3 sec. or less5.6 sec. or less
Copy Speed (Colour/B&W, A4)36 ppm30 ppm
Copy MagnificationFixed Same Magnification1: 1±0.5% or less
Scaling Up1: 1.154/1.224/1.414/2.000
Scaling Down1: 0.866/0.816/0.707/0.500
Preset3 types
Zoom25 to 400% (in 0.1% increments)
Lengthwise Crosswise Individual Settings25 to 400% (in 0.1% increments)
Paper Capacity(80 g/m2)Tray 1500 sheets (up to B4)
Tray 2500 sheets (up to A3)
Multiple Bypass Tray150 sheets (up to SRA3)
Max. Paper Capacity (80 g/m2)*96,650 sheets
Paper WeightTray 152 to 256 g/m2
Multiple Bypass Tray60 to 300 g/m2
Multiple Copy1 to 9,999 sheets
Auto DuplexPaper SizeSRA3, A3 to A5, B6*3, A6*3,
12-1/4" ? 18" (A3 wide (311.1 mm ? 457.2 mm)), 11" ? 17"*3 to
5-1/2" ? 8-1/2"*3, 7-1/4" ? 10-1/2", 8" ? 13", 16K, 8K,
Postcard (A6 (4" ? 6" Card))
Paper Weight52 to 256 g/m2
Power RequirementsAC220 to 240 V 8.0 A (50/60 Hz)
Max. Power Consumption1.5 kW or less
Dimensions [W] ? [D] ? [H]615 ? 685 ? 779 mm (24-3/16" ? 27-15/16" ? 30-11/16")
WeightApprox. 85 kg (187-3/8 lb)
Space Requirements [W] ? [D]*10937 ? 1,214 mm (36-7/8" ? 47-13/16")


*1 SRA3 paper can be used in Tray2.
*2 There are four types of foolscap: 8-1/2" ? 13-1/2"*2, 8-1/2" ? 13"*2, 8-1/4" ? 13"*2, and 8" ? 13"*2.
Any one of these sizes is selectable. For details, contact your service representative.
*3 Short edge feed
*4 There are six types of foolscap: 8-1/2" ? 13-1/2"*3, 220 mm ? 330 mm*3, 8-1/2" ? 13"*3, 8-1/4" ? 13"*3, 8-1/8" ? 13-1/4"*3, and 8" ? 13"*3.
Any one of these sizes is selectable. For details, contact your service representative.
*5 Wrinkles or printing errors may occur due to the type, storage or environment that exists when envelope printing is carried out.
*6 Printing on banner paper can only be performed from a PC.
*7 May vary depending on the operating environment and usage.
*8 A4 long edge feed full size/using the first tray/scanning from the original glass surface.
*9 With options installed.
*10 Without options, with paper trays pulled out, and multiple bypass tray, auxiliary tray and ADF opened.

Print Specifications

TypeEmbedded
CPUARM Cortex-A7 Dual-core 1.2GHz
MemoryShared with the copier
Print SpeedSame as Copy Speed (when using the same original)
HDD250 GB (Shared with the copier)
Print Resolution1,800 dpi (equivalent) ? 600 dpi (at smoothing) or
1,200 dpi ? 1,200 dpi (in 1,200 dpi mode)
PDLPCL 6, PostScript 3 Emulation, XPS
ProtocolTCP/IP, IPX/SPX (NDS support), SMB (NetBEUI), LPD, IPP1.1, SNMP, AppleTalk
Support OSWindows Vista*1 / 7*1 / 8*1 / 8.1*1
Windows Server 2008*1 / 2008 R2 / 2012 / 2012 R2
Mac OS X (10.6 / 10.7 / 10.8 / 10.9 / 10.10)
Linux
FontsPCL80 Roman fonts
PS137 Roman Type1 fonts
InterfaceEthernet (10BASE-T/100BASE-TX/1000BASE-T),
USB 1.1, USB 2.0, IEEE 802.11 b/g/n*2 Bluetooth LE*2

Scanning Specifications

TypeFull-Colour Scanner
InterfaceEthernet (10BASE-T/100BASE-TX/1000BASE-T), IEEE 802.11 b/g/n*1
DriverTWAIN Driver, HDD TWAIN Driver
ProtocolTCP/IP (FTP, SMB, SMTP, WebDAV) (IPv4/IPv6)
Scanning Speed (Colour/B&W)
(300 dpi, A4, Simplex)
80 opm*2
Scanning SizeMax. A3 (11" ? 17")
Output FormatTIFF, JPEG, PDF, Compact PDF, XPS, Compact XPS, OOXML (pptx, xlsx*1, docx*1), Searchable PDF*1, PDF/A*1, Linearised PDF*1
Scanning ResolutionPush200 dpi / 300 dpi / 400 dpi / 600 dpi
Pull100 dpi / 200 dpi / 300 dpi / 400 dpi / 600 dpi
Main FunctionsScan to E-Mail, Scan to FTP, Scan to BOX (HDD), Scan to PC (SMB),
Network TWAIN, Scan to WebDAV, Scan to USB, Scan to Scan Server,
Scan to Web Service (WSD-Scan),
Device Profile for Web Services (DPWS)
Other FunctionsMulti-Method Send, Authentication at the time of E-Mail send (SMTP authentication, POP before SMTP), S/MIME, Annotation


Internet Fax

ProtocolTX: SMTP, RX: POP3, TCP/IP Simple mode
Connection ModeFull-Mode
Sending Paper SizeA3, B4, A4
Recording Paper SizeMax. A3
ResolutionB/W: 200 ? 100 dpi, 200 ? 200 dpi, 400 ? 400 dpi, 600 ? 600 dpi
Colour: 200 ? 200 dpi, 400 ? 400 dpi, 600 ? 600 dpi
InterfaceEthernet (10BASE-T/100BASE-TX/1000BASE-T)
ColourSupport Colour Internet Fax
FormatB/W: TIFF-F
Colour: TIFF (Conforms to RFC3949 Profile-C)

Fax Kit FK-514 (Optional)

CommunicationSuper G3
Compatible LinesPublic Switch Telephone Network, Private Branch Exchange,
Fax Communication Line
Line DensityUltra Fine: 600 dpi 600 dpi
Super Fine: 16 dot/mm 15.4 line/mm, 400 dpi 400 dpi
Fine: 8 dot/mm 7.7 line/mm, 200 dpi 200 dpi
Normal: 8 dot/mm 3.85 line/mm
Modem Speed2.4 to 33.6 kbps
CompressionMH/MR/MMR/JBIG
Sending Paper SizeMax. A3 (Long Length Support: Max.1,000 mm)
Recording Paper SizeMax. A3 (Long Length Max. 1,000 mm — following the page division —)
Transmission SpeedLess than 2 sec. (A4, V.34, 33.6 kbps, JBIG)
MemoryShared with the copier
Number of Abbr. Dials2,000
Number of Program Dials400
Number of Group Dials100
Sequential Multiple Station TransmissionMax. 600

Internet Fax (Optional)* Optional Fax Kit FK-514 is required.

Protocol TransmissionTCP/IP, SMTP
Sending Paper SizeA3, B4, A4
Resolution200 ? 200 dpi, 400 ? 400 dpi, 600 ? 600 dpi
FormatB/W: TIFF-F, TIFF-S
Colour: TIFF, PDF


Fiery Image Controller IC-416 (Optional)
* Optional Upgrade Kit UK-211 and Video Interface Kit VI-508 is required.

TypeEmbedded
CPUIntel Pentium G850 2.9GHz
Memory2 GB
HDD500 GB
Print Speed1,800 dpi (equivalent) ? 600 dpi (at smoothing) or
1,200 dpi ? 1,200 dpi (in 1,200 dpi mode)
Print ResolutionTCP
PDLAdobe PostScript 3
ProtocolEthernet (Apple Talk, TCP/IP), HTTP/HTTPS, SSL/TLS for HTTPS,
SNMP v3, SMB, Port9100 (Bi-Directional), IPP, LDAP, IPV6
Support OSWindows Vista*1 / 7*1 / 8*1 / 8.1*1
Windows Server 2008*1 / 2008 R2 / 2012
Mac OS X (10.6 / 10.7 / 10.8 / 10.9 / 10.10)
FontsAdobe PS 138 Roman fonts, Agfa PCL 80 Roman fonts and 1 bitmap font,
Additional PCL 35 fonts, Euro Currency Resident Font
InterfaceEthernet (10BASE-T/100BASE-TX/1000BASE-T)

* Optional Upgrade Kit UK-211 and Video Interface Kit VI-508 is required.
TypeEmbedded
CPUIntel Pentium G850 2.9GHz
Memory2 GB
HDD500 GB
Print Speed1,800 dpi (equivalent) ? 600 dpi (at smoothing) or
1,200 dpi ? 1,200 dpi (in 1,200 dpi mode)
Print ResolutionTCP
PDLAdobe PostScript 3
ProtocolEthernet (Apple Talk, TCP/IP), HTTP/HTTPS, SSL/TLS for HTTPS,
SNMP v3, SMB, Port9100 (Bi-Directional), IPP, LDAP, IPV6
Support OSWindows Vista*1 / 7*1 / 8*1 / 8.1*1
Windows Server 2008*1 / 2008 R2 / 2012
Mac OS X (10.6 / 10.7 / 10.8 / 10.9 / 10.10)
FontsAdobe PS 138 Roman fonts, Agfa PCL 80 Roman fonts and 1 bitmap font,
Additional PCL 35 fonts, Euro Currency Resident Font
InterfaceEthernet (10BASE-T/100BASE-TX/1000BASE-T)
